SBW-243
WARNING
MAXIMUM PAYLOAD OF EACH BOARD
300 kg / 660 lbs
ADJUSTABLE WHEEL SUPPORT
182 – 260 mm / 7.17 – 10.24 inch
SBW243010B ADDITIONAL PLATE FOR
Elemack, Panther, Movietech, GFM etc

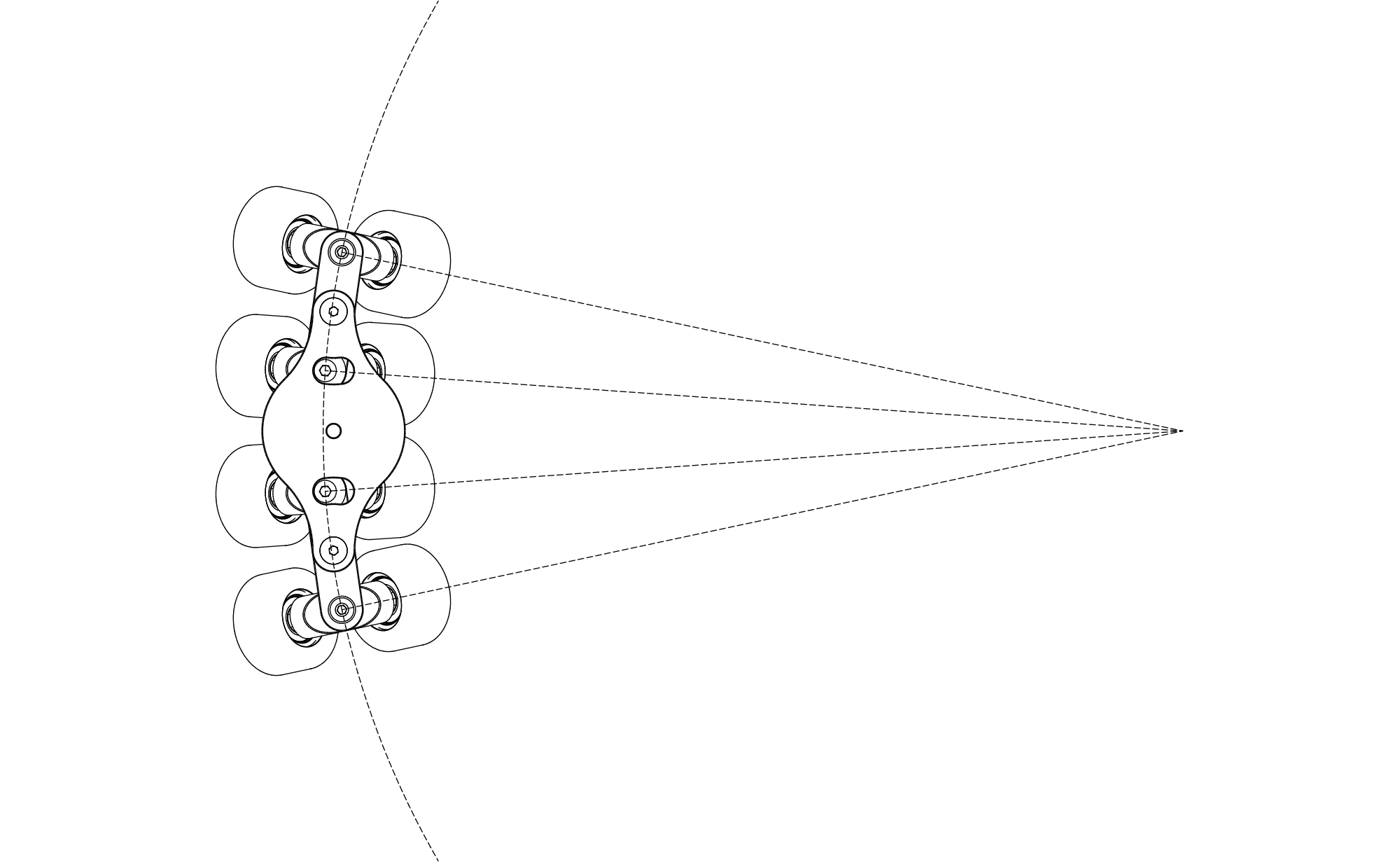

SMALLEST RADIUS THE SKATEBOARD IS
STILL SUITABLE FOR 50 cm / 1.64 ft
WHEELBASE – TRACK DIAMETER RATIO
LEARN MORE IN THE USER MANUAL
made of high-grade aluminium
and stainless steel
GLASS BEAD BLASTED
BLACK ANODIZED SURFACE FINISH
COMPATIBLE WITH
ALL KIND OF DOLLIES
DOLLY WHEEL SIZE RANGE
182 – 260 mm / 7.17 – 10.24”
WHEEL HARDNESS
60° Shore A
WEIGHT OF EACH BOARD
7,1 kg / 15.7 lbs
MAXIMUM PAYLOAD OF EACH BOARD
300 kg / 660 lbs
LIFTING DISTANCE FROM TRACK
approx. 9 cm / 3.5”
DIMENSIONS WITHOUT SBW243010B
82 x 27 x 14 cm / 33 x 11 x 6”
COMPATIBLE TRACK GAUGE
60 – 69 cm / 23.62 – 27.16”
Learn more about features and
specifications in the manual
